High Speed Pump
Exhibitor Information
Zhejiang Tiande Pump Limited Company

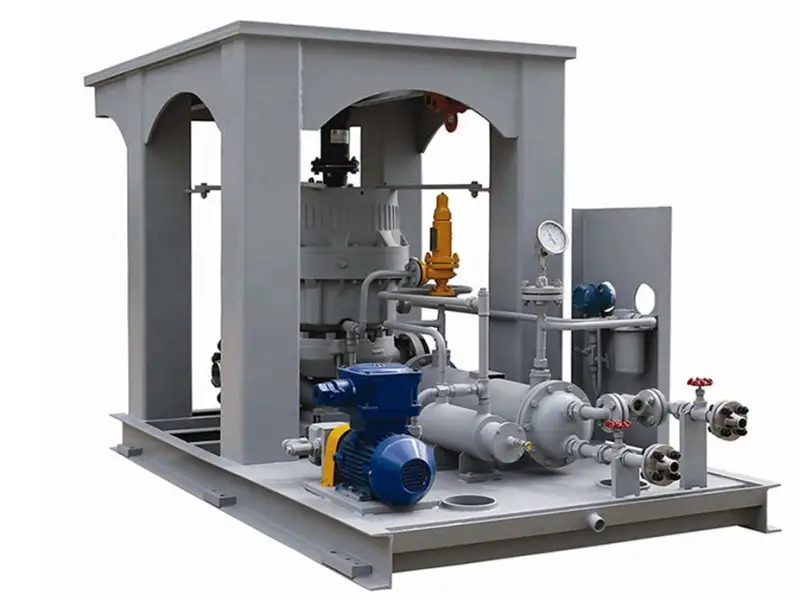

As shown, these are three types of OH6 vertical high-speed centrifugal pumps GSB-L1 / L2 / L3, which conform to API610 standard, equivalent to LMV-322 / 311 / 341 series of an American brand, and general pumps of applicable parameters in the refining field worldwide. These pumps are the main type for the export of Tiande Pump products, and there is a wide market for accessories of pumps in use on site and new projects. Tiande Pump can provide targeted OH6 pumps for a variety of complex working conditions within the applicable parameters, and can provide a full set of accessories, complete pump replacement and on-site after-sales service for other international pump brands. Technical parameter:
Pump
model Capacity
m3/h Head
m Speed
RPM Temperature
℃ Motor Power
kW
GSB-L1 5 to 52 70 to 920 4800 to 14200 -130 to 340 5.5 to 37
GSB-L2 5 to 90 250 to 1220 7850 to 22700 -130 to 340 37 to 160
GSB-L3 10 to 227 500 to1980 7850 to 22700 -130 to 340 132 to 315
