Wenzhou Jintai Metal Technology Co., Ltd

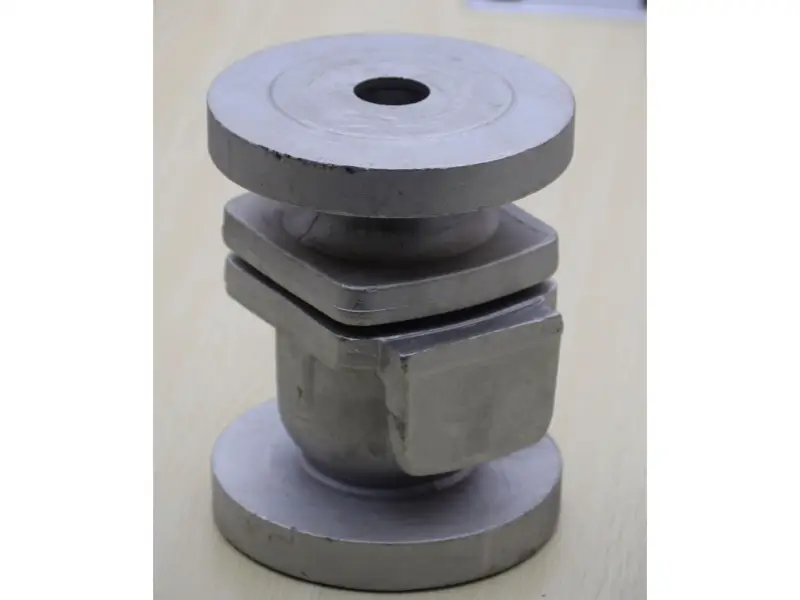

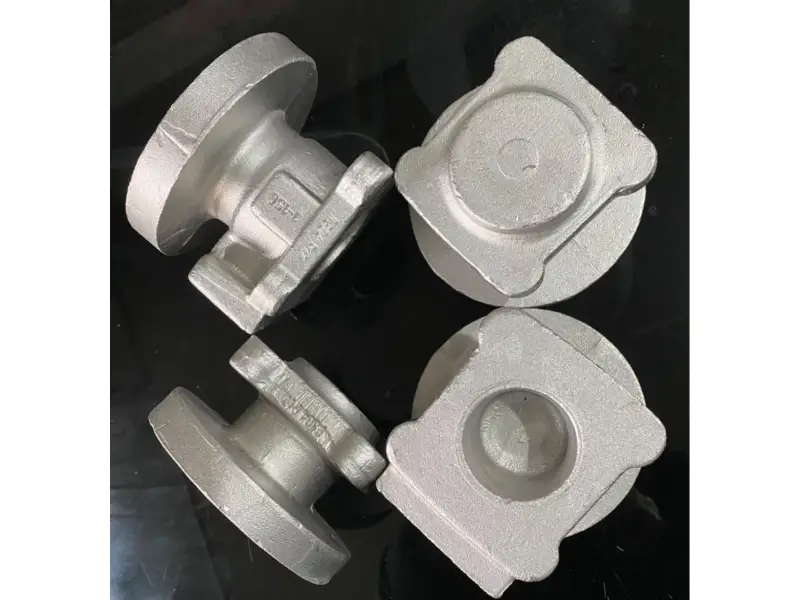

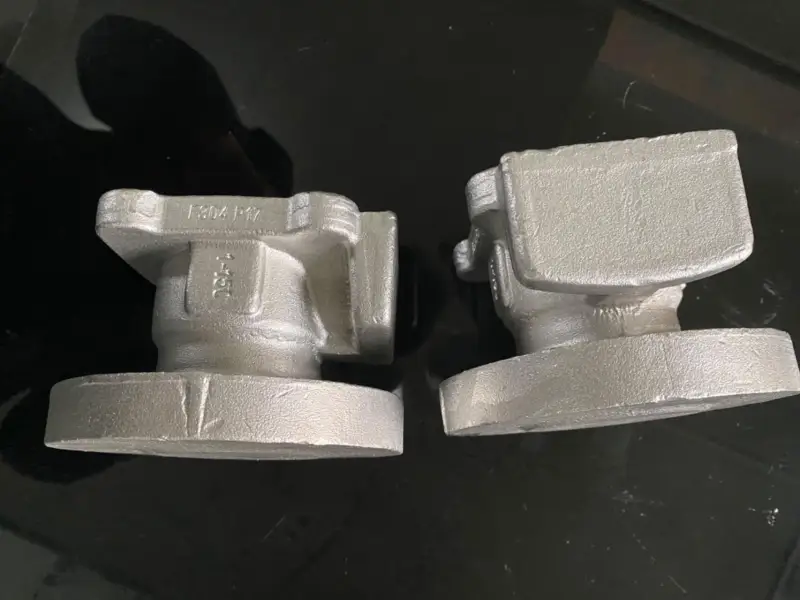

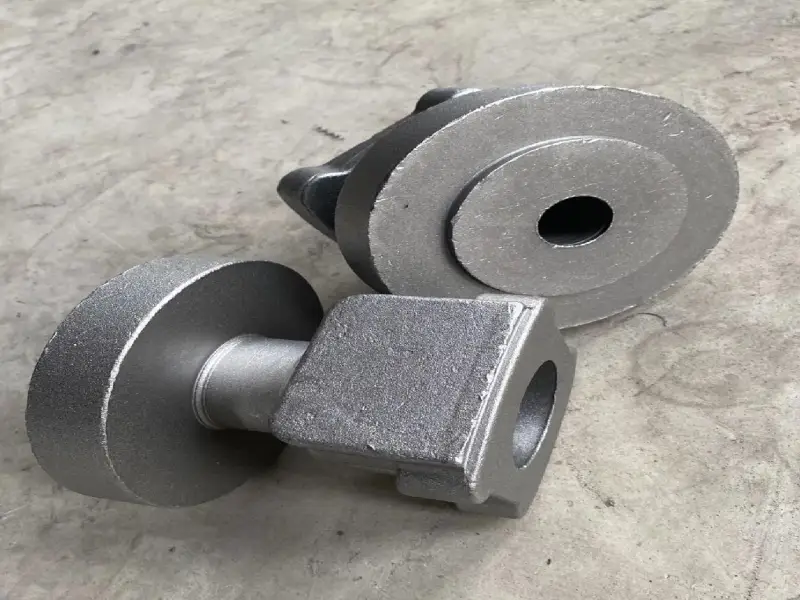

1. Die forging ball valve blanks are divided into body and bonnet. The dimensions are ASME B16.10, ASME B16.5, Hg/20615, HG/20592.
2, production process: the use of rapid multi-direction die forging oil press forging process technology, remove the ball hole, diameter hole of the material, valve weight to reduce a lot.
3. Material: A105N, F304, F304L, F316, F316L, F22, F11, etc.
4. Specification: dn15-dn50mm (GB) , 1/2”-2”(US) , 1.6,2.5,4.0 mpa (GB) , 150,300,600 lb (US) .
5. The blank can be used in the structure of hard seal and soft seal, and the structure of large platform is designed to fit pneumatic, electric and manual actuator installation.
2, production process: the use of rapid multi-direction die forging oil press forging process technology, remove the ball hole, diameter hole of the material, valve weight to reduce a lot.
3. Material: A105N, F304, F304L, F316, F316L, F22, F11, etc.
4. Specification: dn15-dn50mm (GB) , 1/2”-2”(US) , 1.6,2.5,4.0 mpa (GB) , 150,300,600 lb (US) .
5. The blank can be used in the structure of hard seal and soft seal, and the structure of large platform is designed to fit pneumatic, electric and manual actuator installation.
