Wafer Type Butterfly Valve
Categories: Corollary Equipment And Others
Exhibitor Information
santhai

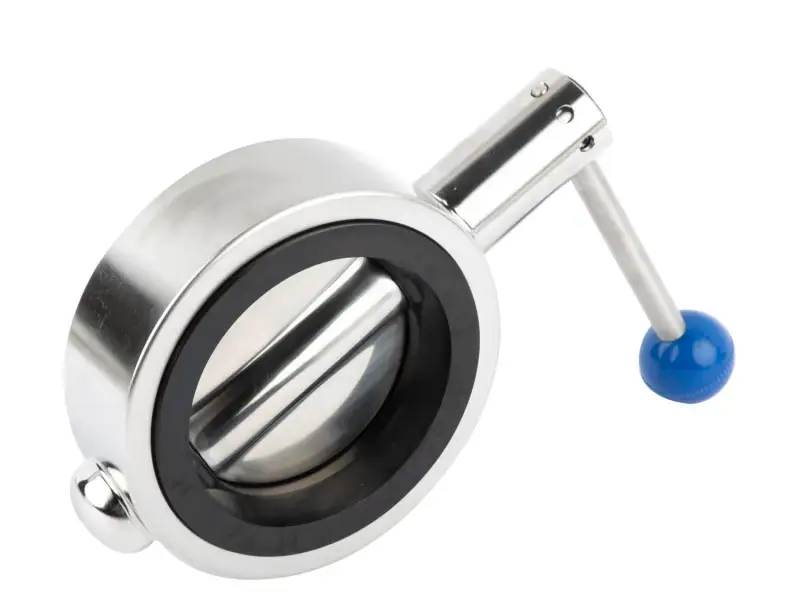

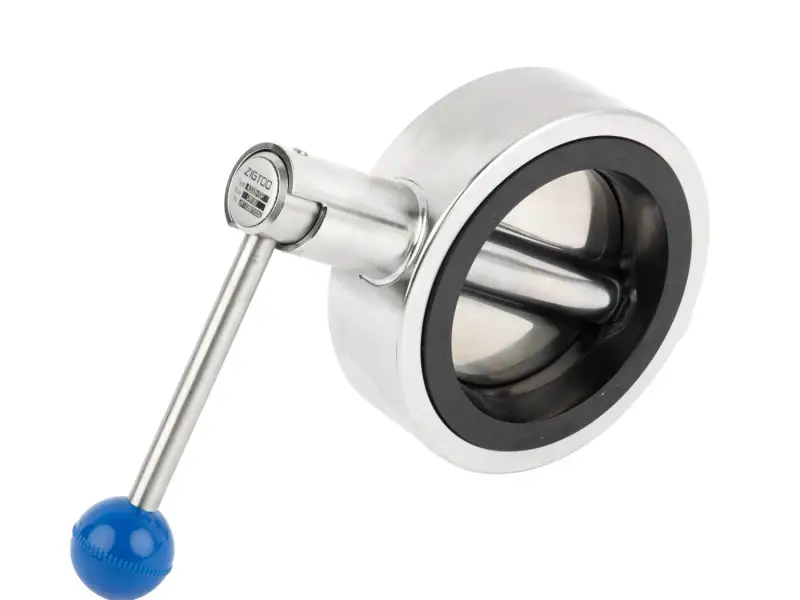

Sanitary Wafer Butterfly Valve
Application:
Designed for hygienic industries such as food & beverage, pharmaceutical, biotech, and cosmetics, where cleanability, corrosion resistance, and sterility are critical.
Key Features:
✔ Sanitary Design: Electropolished surfaces (Ra ≤ 0.8μm), no dead zones, compliant with FDA, EHEDG, 3-A standards.
✔ Material: Stainless Steel 304/316L, PTFE/EPDM seals (compatible with CIP/SIP cleaning).
✔ Connection: Wafer-type (clamped between flanges), Tri-Clamp (DIN 32676), or ISO 2852 standards.
✔ Sealing: Zero leakage, PTFE-lined disc or full EPDM soft seat options.
✔ Operation: Manual handle, pneumatic actuator, or electric actuator available.
Technical Specifications:
Size Range: DN15 ~ DN200 (½" ~ 8")
Pressure Rating: 10 bar (standard) / 16 bar (high-pressure option)
Temperature Range: -20°C to +150°C (varies by seal material)
Standards: GMP, ASME BPE, DIN 11866
Application:
Designed for hygienic industries such as food & beverage, pharmaceutical, biotech, and cosmetics, where cleanability, corrosion resistance, and sterility are critical.
Key Features:
✔ Sanitary Design: Electropolished surfaces (Ra ≤ 0.8μm), no dead zones, compliant with FDA, EHEDG, 3-A standards.
✔ Material: Stainless Steel 304/316L, PTFE/EPDM seals (compatible with CIP/SIP cleaning).
✔ Connection: Wafer-type (clamped between flanges), Tri-Clamp (DIN 32676), or ISO 2852 standards.
✔ Sealing: Zero leakage, PTFE-lined disc or full EPDM soft seat options.
✔ Operation: Manual handle, pneumatic actuator, or electric actuator available.
Technical Specifications:
Size Range: DN15 ~ DN200 (½" ~ 8")
Pressure Rating: 10 bar (standard) / 16 bar (high-pressure option)
Temperature Range: -20°C to +150°C (varies by seal material)
Standards: GMP, ASME BPE, DIN 11866
