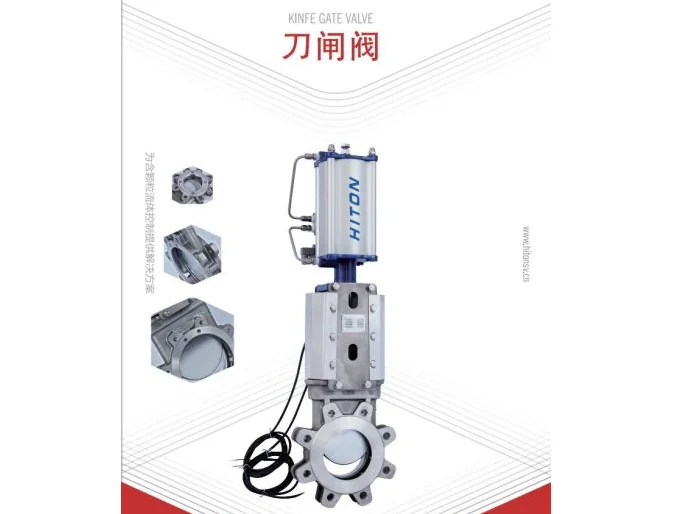

Unidirectional Knife Gate Valve
Categories: Globe Valve Sort
Exhibitor Information
Hiton Special Valve Co., Ltd
Flow Control: On-off Control
Flow Direction: Unidirectional
Size Range: DN50-DN1000
Pressure Rate: DN 50 - DN250: 10 Bar
DN300 - DN450: 7 Bar
DN500 - DN600: 4 Bar
DN700 - DN1000: 2Bar
Working Temperature: -29-220℃, -29-350℃
Face-Face Standard: MSS SP-81
End Connection: Full-Lug and Semi-Lug
Materials: WCB, SS, etc
Seal Type: Metal Seat and Soft Seat
Leakage Standard: MSS SP-81 (2.8 Bar hydraulic pressure)
Suitable Medium: Solid and Liquid
Applicable Industry: Pulp and Paper, Mining, Sewage Treatment, Food&Beverage, and Cement.
